SDR Communication Platform
Software-Defined Radio Platform
Wideband SDR for tactical and ISR field links. Tunes 1 MHz to 18 GHz, transmits >10 W, sustains >150 Mbps full-duplex. Ruggedised enclosure. UART TTL, RS-232/422/485, and Gigabit Ethernet on the back panel.
1MHz–18GHz>150 MbpsFull DuplexRuggedized

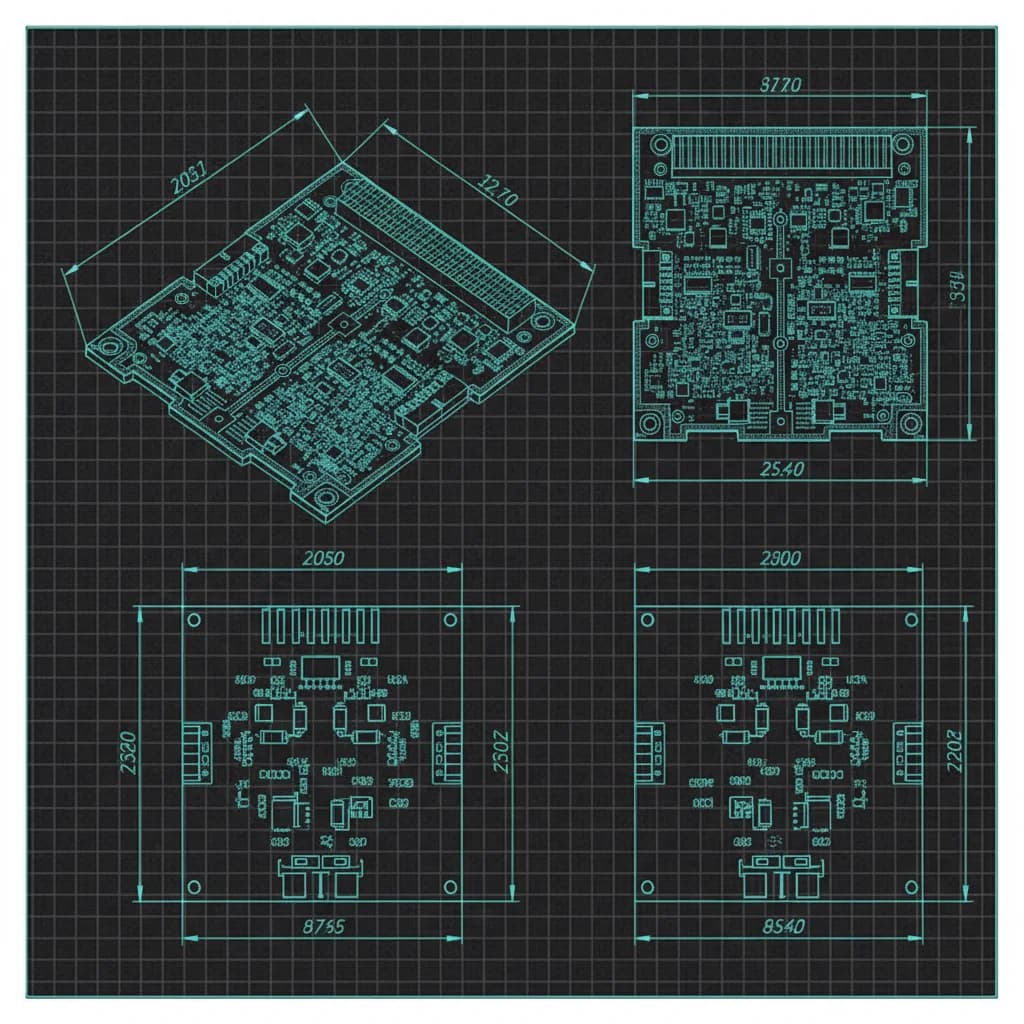

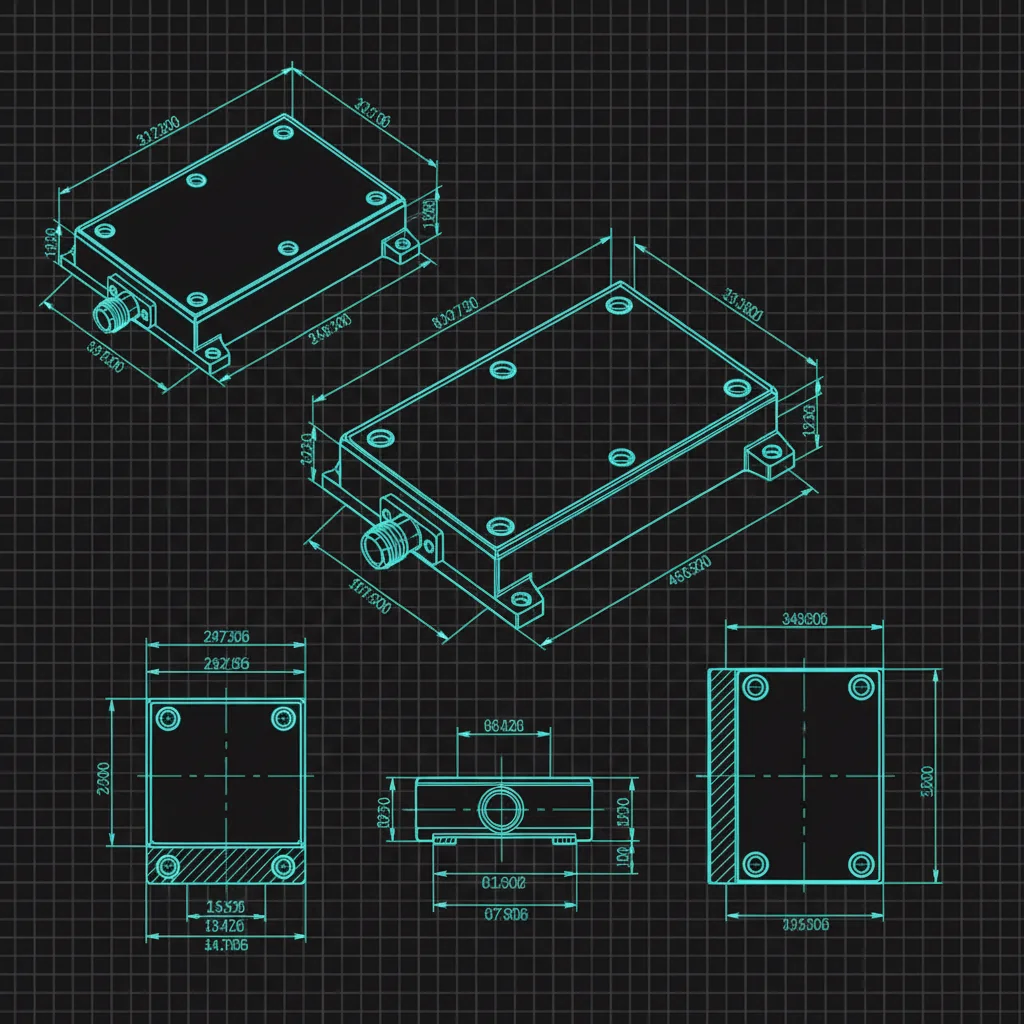

Technical illustrationTechnical Specifications
Frequency1 MHz – 18 GHz
TX Power> 10W
Data Rate> 150 Mbps
ModeFull Duplex
RangeLong-Range
InterfacesUART TTL / RS232 / RS485 / RS422 / Ethernet
EnclosureRuggedized
PAHigh Efficiency
Key Features
Wideband Coverage
1 MHz to 18 GHz frequency range with configurable channels for maximum operational flexibility.
High-Speed Data & Video
Supports data rates exceeding 150 Mbps for real-time data and video transfer in field operations.
Full Duplex Communication
Simultaneous transmit and receive for uninterrupted two-way communication in demanding field environments.
Multi-Interface Support
Configurable UART TTL, RS-232, RS-485, RS-422, and Ethernet channels — drop-in to existing avionics stacks and ground terminals.
Interested in the SDR Communication Platform?
Contact our team for technical datasheets, pricing, and integration support.
Request a Quote→
