CubeSat OnBoard Computer
Flight-Proven OBC
CubeSat onboard computer for command, data handling and attitude control — flies the bus, runs payload schedules, handles fault recovery.
ARM Cortex-M79-DOF IMUFlight Qualified

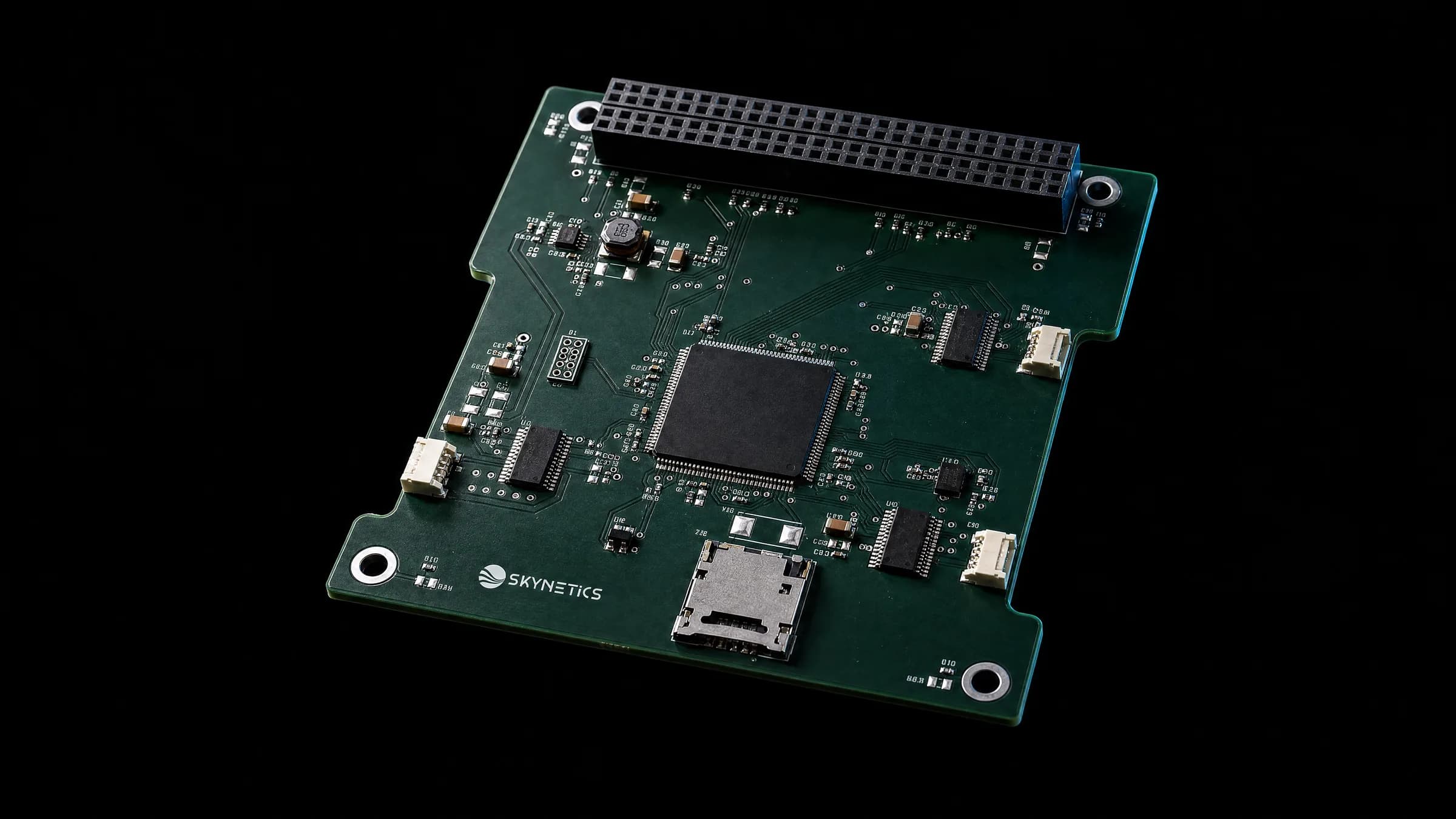

Product render
Technical Specifications
ProcessorARM Cortex-M7, 300 MHz
Memory2 MB flash, 384 KB SRAM
Sensors9-DOF IMU
Actuators3 × PWM drivers
InterfacesUART / SPI / I²C / CAN, microSD
Form FactorPC-104, 90 × 96 mm, 90 g
HeritageFlight Qualified
Key Features
Flight-Qualified Compute
ARM Cortex-M7 at 300 MHz with a 9-DOF IMU and three PWM actuator drivers — command, data handling and attitude control on one PC-104 board.
Rich Interface Set
UART, SPI, I²C and CAN plus microSD storage — talks to every avionics bus on a CubeSat platform without glue boards.
Interested in the CubeSat OnBoard Computer?
Contact our team for technical datasheets, pricing, and integration support.
Request a Quote→
