Wideband LNA
Low-Noise RF Front End
In-house low-noise amplifiers in custom bands and form factors. The Ka-band SKYLNA-HR-1720 variant covers 27.5 – 31.0 GHz with a two-stage MMIC design and a 45-day lead time.
LNAKa-BandCustom BandsIn-House

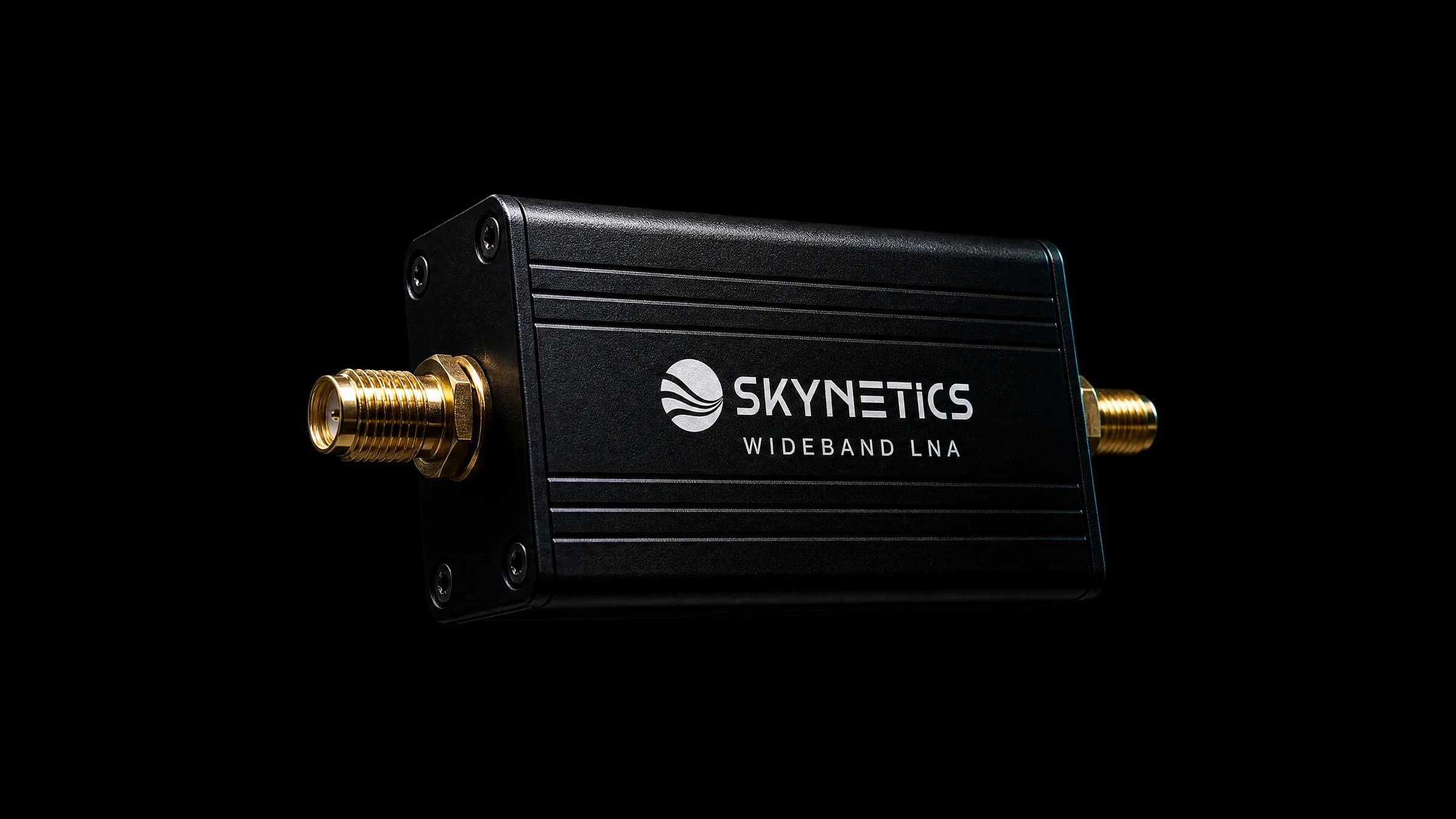

Product render
Technical Specifications
BandsCustom; Ka-band variant 27.5 – 31.0 GHz
Noise Figure≤ 1.75 dB (Ka-band)
Gain≥ 40 dB
P1dB15 dBm
Return Loss≥ 15 dB
Connectors2.92 mm, 5 V bias
Operating Temp−40 to +85 °C
Key Features
Built In-House
Two-stage MMIC design manufactured and tested in Bengaluru, with a 45-day lead time on the Ka-band unit.
Custom Bands
Same front-end architecture retargeted to the customer's band and form factor, including Q/V-band feeder-link variants.
Interested in the Wideband LNA?
Contact our team for technical datasheets, pricing, and integration support.
Request a Quote→
